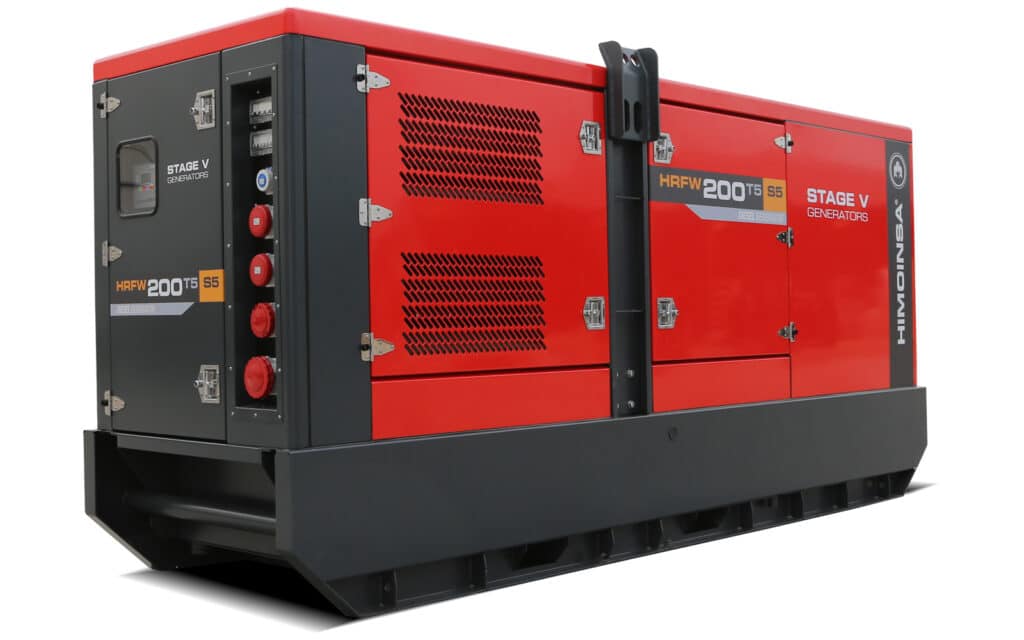

Powered by FPT_IVECO
Alternator STAMFORD
Emissions STAGE V
Engine
- Engine Specifications 1.500 r.p.m.
- Rated Engine Output: 176kW prp ; 195kW standby
- Manufacturer: FPT_IVECO
- Model: N67.TEVP05
- Engine Type: 4-stroke diesel
- Injection Type: Direct, common rail
- Aspiration Type: Turbocharged and after-cooled
- Number of cylinders and arrangement: 6-L
- Bore and Stroke: 104 x 132 mm
- Displacement: 6,7 L
- Cooling System: Liquid (water + 50% glycol)
- Lube Oil Specifications: 10W40 CJ4 / CK4 ACEA E9
- Compression Ratio: 17:1
- Fuel Consumption ESP: 48,1 l/h
- Fuel Consumption 100% PRP: 42,8 l/h
- Fuel Consumption 80 % PRP: 33,9 l/h
- Fuel Consumption 50 % PRP: 21,3 l/h
- Total oil capacity including tubes, filters 17,2 L
- Total coolant capacity: 25,5 L
- Governor Type Electrical
- Air Filter Type Dry
- Diesel engine
- 4-stroke cycle
- Water-cooled
- 24V electrical system
- Water separator filter (no visible level)
- Dry air filter
- Radiator with pusher fan
- Radiator water level sensor
- Electronic governor
- Hot parts protection
- Moving parts protection
Alternator
- Generator: STAMFORD
- Model: UCI274H
- Poles: 4
- Connection type (standard): Star-series
- Mounting type: S-3 11″1/2
- Insulation: H class
- Enclosure (according IEC-34-5): IP23
- Exciter system: Self-excited, brushless
- Voltage regulator: A.V.R. (Electronic)
- Bracket type: Single bearing
- Coupling system: Flexible disc
- Coating type: Standard (Vacuum impregnation)
Version
SOUNDPROOFED VERSION
- Steel chassis
- Anti-leakage chassis, predisposed to retain liquids (retention tray)
- Manhole for fuel tank cleaning and drainage
- Manhole for chassis cleaning
- Slide carriage and brackets for transportation with forklift
- Tilting cap in the exhaust
- Manhole to fill the radiator
- Pre-installation or niche to house the quick connection hydraulic fittings for fuel transfer
- Anti-vibration shock absorbers
- Chassis with integrated fuel tank
- Fuel level gauge
- Bodywork made from high quality steel plate
- High mechanical strength
- Low noise emissions level
- Soundproofing provided by high-density volcanic rock wool
- Epoxy polyester powder coating
- Full access for maintenance (water, oil and filters, no need to remove the canopy)
- Reinforced lifting hooks for crane hoisting
- Steel residential silencer -35db(A) attenuation.
- Oil sump extraction kit
- Emergency stop button (double emergency stop protection: Interior on the panel + Exterior on the bodywork)
- Mechanized for power cable output
- Door with window to visualize control panel, alarms and measurements
- Pressure locks
- IP Protection according to ISO 8528-13:2016
- 3 way valve for external fuel supply (available in 1/2″ and 3/8″ fittings) (Optional)
- Fuel transfer pump (Optional)
Installation
ELECTRICAL SYSTEM
- M5 control panel with electronic CEM7 control unit and switched emergency stop
- Power panel with built-in circuit breaker plates
- Safety relay in output terminal board (thermal magnetic trip and alarm in control unit)
- Battery Switch
- Socket boxes with 2x16A (2Ph), 1x16A (3Ph), 1x32A (3Ph) y 1x63A (3Ph)
- Adjustable earth leakage protection (time & sensitivity) standard in M5 and AS5, with thermal magnetic protection
- Battery charger alternator with ground connection
- Starter battery/ies installed (cables and bracket included)
- Ground connection electrical installation with connection ready for ground spike (not supplied)
EXHAUST SYSTEM
- Maximum exhaust temperature: 550 ºC
- Maximum allowed back pressure: 20 kPa
NECESSARY AMOUNT OF AIR
- Intake air flow: 665 m3/h
- Cooling Air Flow: 2,84 m3/s
Alternator fan air flow: 0,514 m3/s
STARTING SYSTEM
- Auxiliary Voltage: 24 Vdc
FUEL SYSTEM
- Fuel Oil Specifications: Diesel
- Fuel Tank: 580 L

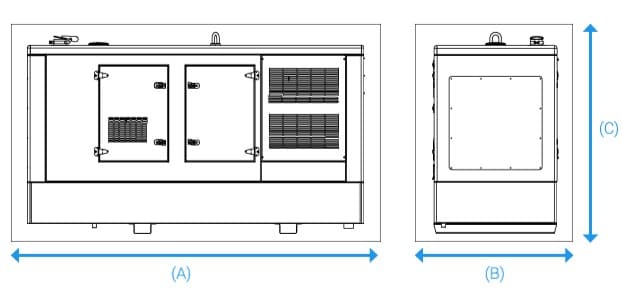

Dimensions
- Height: 2.100 mm
- Width: 1.190 mm
- Weight with liquids in
- radiator and sump: 3.045 kg
- Fuel tank capacity: 580 L
- Autonomy: 17 Hours
- Sound pressure level: 66 ± 2,4 dB(A)@7m
Weight with fluids in radiator and crankcase
